Back River Bridgeladams2023-07-12T10:11:33-04:00

Project Description

Back River Bridge

Savannah, Georgia

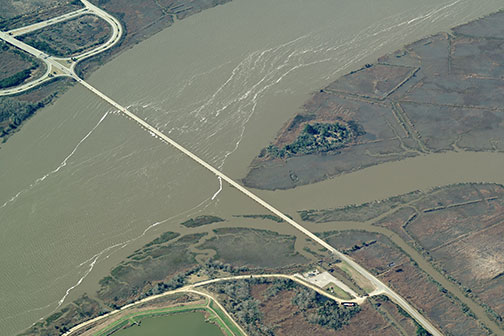

Back River Bridge

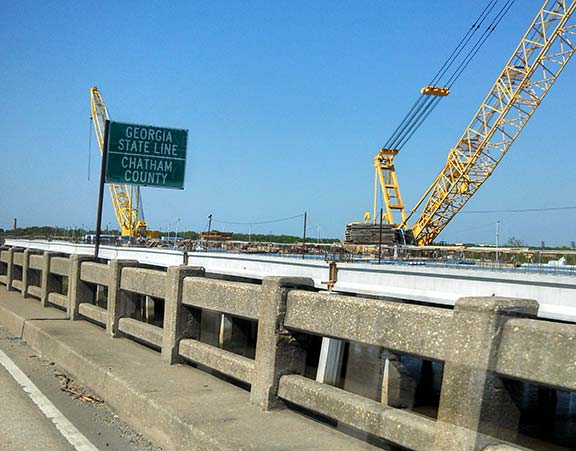

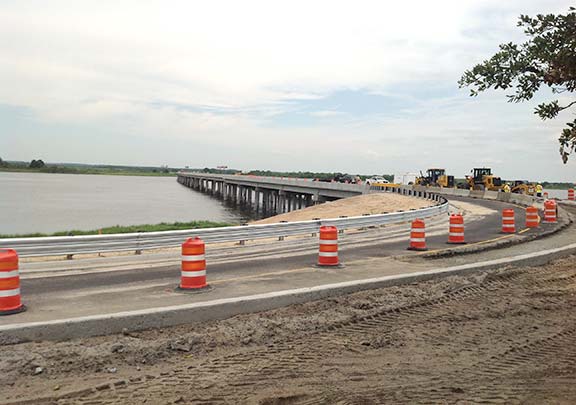

Back River Bridge Under Construction
Back River Bridge Under Construction

The 60 years old Back River Bridge that connects Chatham County, Georgia with Jasper County, SC had been rated as structurally deficient. It had been the site of many accidents, including several fatal wrecks. Safety issues were caused in part by 2-foot-wide shoulders. Several head-on car crashes forced authorities to close the bridge temporarily because they could not move cars to the side. Worse, traffic and lack of space for emergency vehicles to get through meant that rescuers could not be on the scene quickly.

Georgia DOT designed a new 3,290-foot, two-lane bridge that includes 8-foot-wide shoulders on each side. The new bridge improves safety, providing 12 extra feet for drivers to get over on the shoulder. It also enables drivers to get out of the way when emergency vehicles must race to get through to the accident scene. What???s more, the widened shoulders enable cyclists to enjoy the East Coast Greenway bicycle trail.

Approximately 19,000 vehicles travel across the bridge every day, a number that will rise to 36,000 a day by 2030. Replacing the bridge would head off bigger problems around Savannah???s vibrant harbor and fast-growing commercial center.

For Georgia DOT, designing a new, three-fifths of a mile bridge presented many challenges beyond the structure itself. There was the added complexity of the sheer number of stakeholder agencies involved. GDOT would have to skillfully coordinate with a dozen government entities, including these:

  • The City of Savannah
  • Chatham County, GA
  • Jasper County, SC

  • US Environmental Protection Agency

  • US Corp of Engineers

  • Savannah Metropolitan Planning Organization

  • South Carolina DOT

  • Georgia Port Authority

  • National Marine Fisheries

  • South Carolina Department of Health and Environmental Control

PROJECT DETAILS

GDOT hired Qk4 to prepare the concept report, surveys, right-of-way plans, and construction documents for this one-mile corridor of US 17. The project also required reconstruction of an interchange with Hutchinson Island and a tie-in to the existing Talmadge Memorial Bridge. We developed construction staging plans so all traffic movements for the interchange remained open during construction of the new bridge.

Notable features of the project included:

  • Constructed a new 3,290-foot two lane bridge over the Back River
  • Coordinated with two state DOTs and a dozen government agencies
  • Maintained traffic movement throughout construction
  • Realigned existing roadway and constructed of two new on/off ramps
  • Included 48 bents constructed with 24-foot-square PSC Piles
  • Enabled 20,000 vehicles to travel the bridge daily.

AWARDS

Georgia Partnership for Transportation Quality – 2016 Environmental Enhancement

CLIENT

Georgia Department of Transportation
600 West Peachtree Street, NW
Atlanta, Georgia 30308

Share This Project

Project Details

Areas of Expertise:

Transportation Engineering
Structural Engineering
Surveying Services

Services Provided:

Construction Plans
Preliminary Design
Right of Way Plans
Transportation Engineering

Key Leadership:

Andrew Ballerstedt, PE
